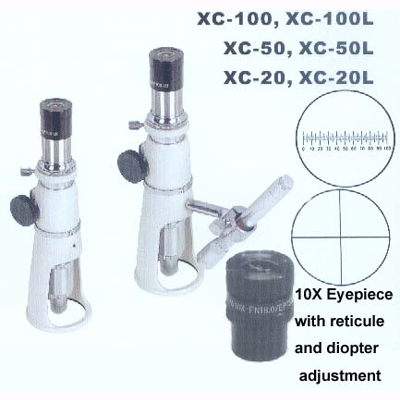

PORTABLE
MEASURING MICROSCOPE |
| FEATURES: |
| THE
PORTABLE MEASURING MICROSCOPE IS USED FOR MEASURING OR VIEWING PURPOSES
IN PRODUCTION OR LABORATORY. IT IS PARTICULARLY SUITABLE FOR SPOT EXAMINATION
OF MACHINERY INDUSTRY, PAPER MAKING, PRINT AND TEXTILE, ETC. tHE PRODUCT
FEATURES SMALL SIZE, LIGHT WEIGHT, NICE DESIGN AND EASY OPERATION. IT IS
ALSO SUITALBE TO BE USED BY STUENTS. |
|
SPECIFICATIONS
|
XC-100(L)
|
XC-50(L)
|
XC-20(L)
|
|
TOTAL
MAGNIFICATION
|
100X
|
50X
|
20X
|
|
MECHANICAL
TUBE LENGTH
|
160MM
|
|
POWER
OF OBJECTIVE
|
10X
|
5X
|
2X
|
|
POWER OF EYEPIECE:
10X
|
|
FOCUS RANGE:
30MM
|
|
DIAMETER OF
VIEWING FIELD IN EYEPIECE: 18MM
|
|
RETICULE OF
EYEPIECE: 0.1MICROMETER
|
|
DIAMETER OF
BEARING PLANE: 63MM
|
|
HEIGHT OF MICROSCOPE:
210MM
|
|
MASS OF MICROSCOPE:
0.65KG
|
 |

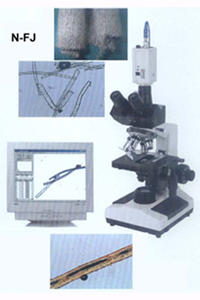

N-FJ
SERIES TEXTILE FIBER TEST INSTRUMENT |
| FEATURES
AND FUNCTIONS |
| - IT IS A PROFESSIONAL INSTRUMENT
TO COMBINE MICROSCOPE AND COMPUTER WITH IMAGE PROCESSING,
MEASUREMENT AND ANALYSIS. IT IS USED FOR INSPECTING
VARIOUS OF FIBER AND SAMPLES ANALYSIS. IT FINISHES
TRADITIONAL DARKROOM OPERATION AND MAKES THE JOB
EFFICIENT. |
| - MANUAL, SEMI-AUTOMATIC AND
MULTI-POINTS MEASUREMENT ARE AVAILABLE. |
| - HIGH EFFICIENCY OF DATA STAT
AD ANALYSIS |
| - TYPING MODE CAN BE CHOSEN
BY USER. |
| - TESTING DATA CAN BY CONVERTED
TO EXCEL |
| - FABRIC OF TEXTILE ANALYSIS
FUNCTION IS AVAILABLE. |
| - MAXIMUM MAGNIFICATION CAN
BE 5000X. |
| STANDARD
OUTFIT: |
| - MICROSCOPE XSZ-N107, OBJECTIVE
4X, 10X, 20X, 40X |
| - COLOR CCD VIDEO CAMERA, 1/3" |
| - VIDEO IMAGE CAPTURE CARD |
| - IMAGE ANALYSIS SOFT WARE FOR
TESTED TEXTILE FIBER |
| - OPTIONS: |
| OTHER MODELS OF
MICROSCOPE |
| OBJECTIVE 2X AND
100X |
| DCE-1 DIGITAL CAMERA
EYEPIECE |
| SAMPLE CUTTER |
