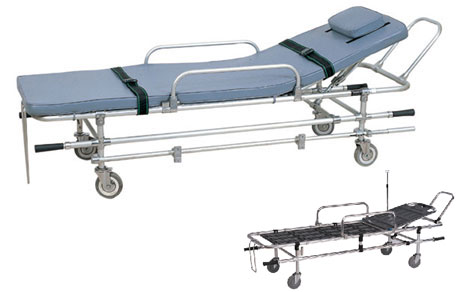

YDC-2A Model Stretcher For Ambulance Car

Character of Function:
We adopt high quality aluminum alloy material to manufacture the products. It is convenient for operating
and it has flexible and light structure.
The bed surface of stretcher is made of foamed cushion which makes the wounded feel comfortable.
The both ends of strectcher have flexible handle which is convenient for lifting the strectcher (when pull it.).
The machine employs low fram structure, so it can move on the ground and also can be lifted as stretcher.

Technical Parameters:
Size (Length×Width×Height): 190×53×55cm
Maximum Angle of the Back: 60°
Distance between Front and rear wheel: 132cm
Weight Bearing: 159kg
Total Weight: 27kg
Packing(1pc)
Size:192×60×34cm
G.W:30kg

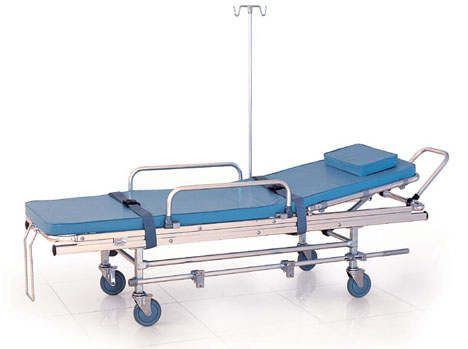

YDC-2B Model Stretcher For Ambulance Car

Character of Function:
We adopt high quality aluminum alloy material to manufacture the products. It is convenient for operating
and it has flexible and light structure.
The bed surface of stretcher is made of foamed cushion which makes the wounded feel comfortable.
The both ends of strectcher have flexible handle which is convenient for lifting the strectcher (when pull it.).
The machine employs low fram structure, so it can move on the ground and also can be lifted as stretcher.

Technical Parameters:
Size (Length×Width×Height): 190×53×55cm
Maximum Angle of the Back: 60°
Distance between Front and rear wheel: 108cm
Weight Bearing: 159kg
Total Weight: 30kg
Packing(1pc)
Size:196×62×39cm
G.W:34kg

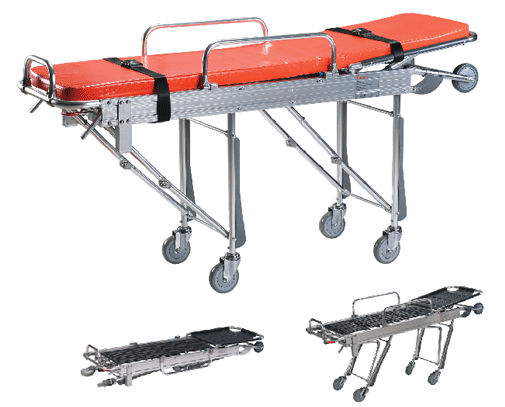

YDC-3A
Stretcher For Ambulance Car

Technical features:
Mode of high-quality alloyed aluminum.
Bed-surface is made of foamed cushion, which makes the wounded feel comfortable.
The mechanical folding legs are controlled by the handles on both sides.
Only one person can send the patient (with this trolley) to the ambulance.
The stretcher can be locked up after being aboard through the chute.

Technical parameters:
Size (L×W×H ):
high position:190×55×88cm
low position:190×60×26cm
Maximum Angle of the Back: 60°
Weight Bearing :159 kg
Weight: 39kg
Packing(1pc)
Size:196×61×28cm
G.W:42kg

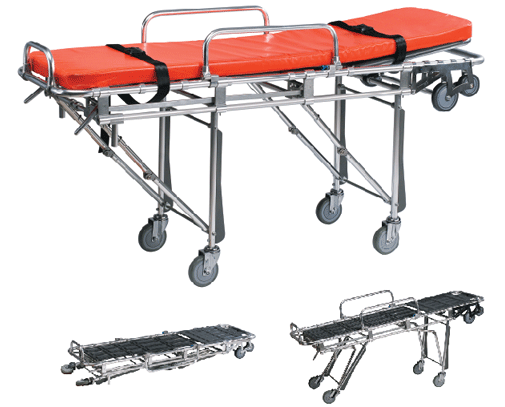

YDC-3B
Stretcher For Ambulance Car

Technical features:
Mode of high-quality alloyed aluminum.
Bed-surface is made of foamed cushion,
which makes the wounded feel comfortable.
The mechanical folding legs are controlled by the handles on both sidcs.
Only one person can send the patient (with this trolley) to the ambulance.
The stretcher can be locked up after be aboard through the chute.

Technical parameters:
Size (L×W×H ):
high position:190×55×88cm
low position:190×60×24cm
Maximum Angle of the Back: 60°
Weight Bearing: 159kg
Weight: 40kg
Packing(1pc)
Size:196×61×26cm
G.W:43kg

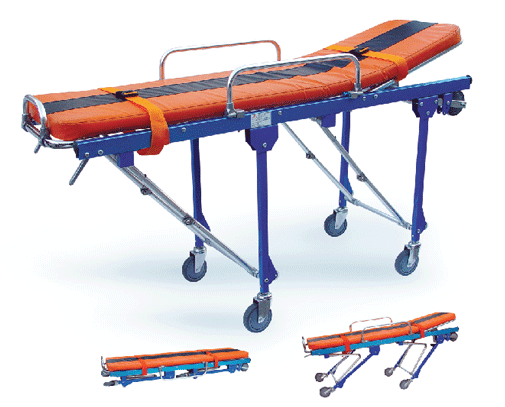

YDC-3C
Stretcher For Ambulance Car

Technical features:
Mode of high-quality alloyed aluminum.
Bed-surface is made of foamed cushion,
which makes the wounded feel comfortable.
The mechanical folding legs are controlled by the handles on both sidcs.
Only one person can send the patient (with this trolley) to the ambulance.
The stretcher can be locked up after be aboard through the chute.

Technical parameters:
Size (L×W×H):
high position: 190×55×90cm
low position: 190×60×24cm
Max angle of the backrest: 60°
Bearing weight: 159kg
Weight: 45kg
Packing(1pc)
Size:194×61×26cm
G.W:49kg

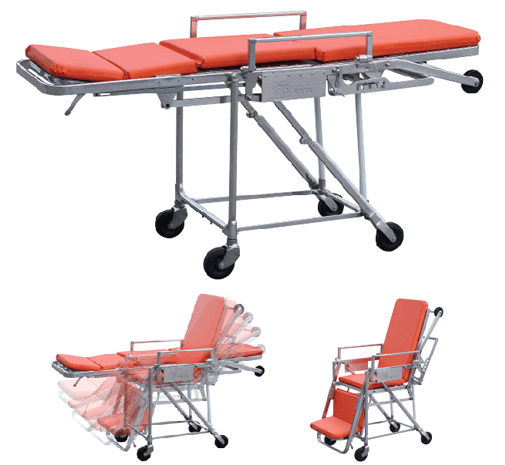

YDC-3D
Stretcher For Ambulance Car

Technical features:
The stretcher trolly can be converted into a chair,the angle of the stretcher can be adjusted according to your demand.It's quite suitable to transfer the patients in the limited place,esp.in the lift.

Technical parameters:
Size (L×W×H):
high position 190×56×90cm
low position 190×56×22cm
Bearing weight: 159kg
Weight: 30kg
Packing(1pc)
Size:194×59×25cm
G.W:33kg
